Rugged Ridge 15100.11 10,500 Lbs. Winch with 25/64" x 94' Synthetic Rope and Hawse Fairlead




You buy Rugged Ridge 15100.11 10,500 Lbs. Winch with 25/64" x 94' Synthetic Rope and Hawse Fairlead with Coupon : LOTET will be discounted 10%


.


Why Use Rugged Ridge 15100.11 10,500 Lbs. Winch with 25/64" x 94' Synthetic Rope and Hawse Fairlead ?

Design rich colors to choose fromOnline shopping for Automotive from a great selection of Tire & Wheel Tools, Diagnostic & Test Tools, Body Repair Tools, Garage . Find excellent deals on a variety of diagnostics tools and testing equipment . This pallet flag provides a twist on the usual flag design by replacing the blue field of stars with a cutout map of the United States with a string art star! Perfect for the 4th of July, this pallet flag will bring flea market style to your patriotic celebration!.​


Rugged Ridge 15100.11 10,500 Lbs. Winch with 25/64" x 94' Synthetic Rope and Hawse Fairlead will help your job easier dexThis high performance 10 500 lbs. winch from Rugged Ridge comes with synthetic rope a remote control and a hawse fairlead. Rugged Ridge is an exciting brand developed to provide quality functional Jeep accessories for the growing Jeep aftermarket. As a Division of Omix-ADA the leader in replacement parts for Jeep vehicles the Rugged Ridge pedigree is well established in the market. Rugged Ridge has created over 2 500 products that are custom designed to fit Jeep vehicles and even more are in the pipeline.Features. Durable 6.6 HP series wound motor.. Tough 3-stage planetary gear box with 2181 gear ratio.. Automatic load holding brake system.. Tough stainless hardware to eliminate rust.. Durable 12 ft. all weather cable remote solenoid box.. Includes 94 ft. of 38 in. 12-strand braid synthetic rope with a breaking force of 19 310 lbs.. Color - Gray.
Lightweight. Durable. Affordable. All these things come to mind when thinking of our Performance Winch from Rugged Ridge. If you’ve ever been off-roading, then you know the importance of having a winch you can rely on for any unforeseen circumstances you may encounter. Constructed of a durable HP series wound motor for long life and extra pulling power, our winch offers more exclusive features than any other winch in its price range. Our winch features a tough 3 stage planetary gear box delivering both power, and reliability on each and every pull. All the exterior winch body screws and bolts are corrosion resistant stainless steel and provide a long life.

Rugged Ridge logo

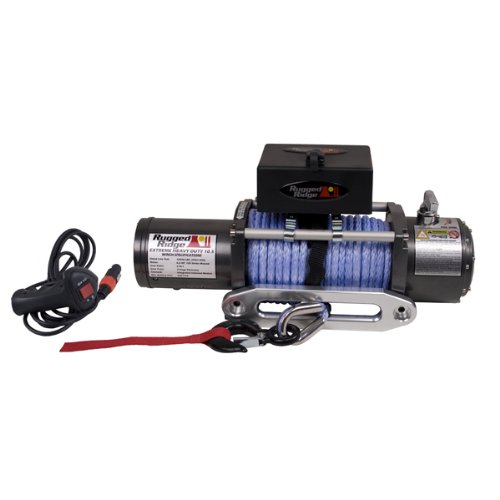

Rugged Ridge 15100.11 10,500Lb Winch with Synthetic Rope and Hawse Fairlead
Durable design, proven performance
View larger
Durable 6.6 HP series wound  motor for long life and extra pulling power
Heavy-duty motor for extended life
View larger
Tough 3 stage planetary gear box with a 218:1 gear ratio delivering power and reliability
Includes 94'by 25/64" diameter synthetic rope and hawse fairlead
View larger
Safety Features
Safety is the most important consideration with all Rugged Ridge products. Our winches feature automatic load holding to minimize the possibility of winch line slippage in the event of power failure. Winches also include a rubberized remote switch with a 12-foot extension cable allowing for safe use during winch operation. A full instructional manual is included for easy installation.


Standard Features:

  • Constructed with Dyneema SK-75 fiber from the Netherlands.
  • Same high strength material used in ballistic body armor.
  • Durable 6.6 HP series wound motor for long life and extra pulling power.
  • Tough 3 stage planetary gear box with a 218:1 gear ratio delivering power and reliability.
  • Automatic load holding brake system (in the drum brake system).
  • Tough corrosion resistant stainless steel hardware used on the body of the winch.
  • Significantly stronger than same diameter steel cable and up to 40% stronger than Kevlar.
  • 1/7 the weight of the same diameter wire rope.
  • Will not splinter, kink, or curl like wire rope.
  • Floats in water.
  • Specially coated to support resistance to UV, abrasions, and chemical solvents.
  • Heavy Duty 3/8” 12-strand braid with a breaking force of 19,310lbs.
  • Protective sleeve keeps line from overheating on winch drum.
Included Items
1-Rugged Ridge 15100.11 10,500Lb Winch, 1-hawse fairlead, 1-94' length of 25/64" synthetic rope, 1-heavy duty latched control hook, 1-12' all weather handheld cable remote, 1-tether/hook strap, 1-users manual.

10,500LB Features & Specifications:
Rated line pull: 10,500LB (4773 kg) single-line
Motor: 6.6 hp, 12V series wound
Control: Remote Switch, 12' lead (3.7m)
Solenoid Style: Integrated Solenoid Module (ISM)
Gear Train: 3-Stage Planetary
Gear Reduction Ratio: 218:01:0
Clutch: Sliding Ring Gear
Braking: Automatic In-the-Drum
(534mm L. x 160m D. x 193mm H.)
Drum Size: Diameter 2.52" (64mm), Length 8.82" (224mm)
Cable: 94' 25/64" Diameter (28.5m, 9.2mm)
Fairlead: 4-Way Roller Fairlead
Remote Control: Included
Recommended Battery: 650CCA minimum for winching
Battery Leads: 25mm 72" (1.83m)
Finish: Dark Grey
Weight: 84lbs (38kg)
Overall Dimensions: (L x W x H) 21.15"x 6.3"x 8.6" (537 x 160 x 218mm)
Mounting Bolt Pattern: 10.00 / 0.015Nx4.50 / 0.0101N (254 x 114.3mm)
10,500LB Line Speed & Amp Draw - First Layer:
Line Pull
Line Speed
Motor Current
lbs (kgs)
ft/min (M/min )
amps
0
29.5 (9)
70
2000 (910)
14.4 (4.4)
170
4000 (1814)
12.15 (3.7)
260
6000 (2720)
9.85 (3.0)
310
8000 (3630)
8.7 (2.65)
380
10500 (4763)
7.2 (2.2)
425






10,500LB Line Pull & Cable Capacity:
Layer of Cable
Rated Line Pull/Layer
Cumulative Cable Capacity
Count
lbs (kgs)
ft (m)
1
10,000 (4532)
16 (5)
2
8633 (3913)
42 (12)
3
7716 (3497)
72 (21)
4
7089 (3213)
94 (28)

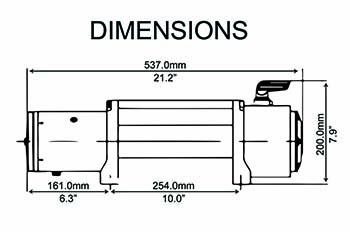

Dimensions

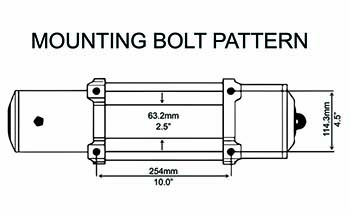

Mounting Bolt Pattern
Warranty
Omix-ADA, Inc. warrants to the initial retail purchaser (“purchaser”) only that when installed and used on purchaser’s vehicle according to supplied product installation instructions and/or warnings, purchaser’s Rugged Ridge Vehicle Recovery Winch shall be free of defects in material and workmanship for: (a.) five years with respect to the mechanical components and (b.) one year with respect to all electrical components including motor, solenoids, switches and controls.


About Rugged Ridge
Rugged Ridge develops and sells Jeep parts accessories for the growing Jeep and off road enthusiast market. Rugged Ridge is a division of Omix-ADA, the market-leader for replacement and restoration Jeep parts. With this know-how and experience the Rugged Ridge pedigree is well established in the Jeep market and with the Jeep enthusiast. Realizing that there was a need for new Jeep accessories, the Rugged Ridge brand was established in 2005 to fill that need. Rugged Ridge has designed and manufactured over 3,000 products for the Jeep market and continues to develop hundreds of additional Jeep accessories each year. Many of the recent developed Jeep accessories are patented, like the Jeep floor liners, Jeep snorkel and Jeep XHD modular bumpers. Count on Rugged Ridge to provide you with true and proven Jeep parts and accessories.
