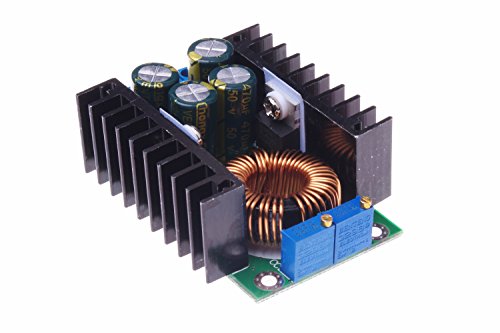

SMAKN® Constant Current/Voltage DC Buck Converter 7-40V To 1.25-35V LED Driver Charger Module 8A
You buy SMAKN® Constant Current/Voltage DC Buck Converter 7-40V To 1.25-35V LED Driver Charger Module 8A with Coupon : LOTET will be discounted 10%
.
Why Use SMAKN® Constant Current/Voltage DC Buck Converter 7-40V To 1.25-35V LED Driver Charger Module 8A ?
Design rich colors to choose fromOnline shopping for Automotive from a great selection of Tire & Wheel Tools, Diagnostic & Test Tools, Body Repair Tools, Garage . Find excellent deals on a variety of diagnostics tools and testing equipment . This pallet flag provides a twist on the usual flag design by replacing the blue field of stars with a cutout map of the United States with a string art star! Perfect for the 4th of July, this pallet flag will bring flea market style to your patriotic celebration!.SMAKN® Constant Current/Voltage DC Buck Converter 7-40V To 1.25-35V LED Driver Charger Module 8A will help your job easier dex*Module Properties: non-isolated step-down constant current , constant voltage module (CC CV) charging module
*Input voltage : DC 7-40V
*Output voltage :DC 1.25-35V continuously adjustable
*Output Current: 10A ( when power tube's temperature exceeds 65 degrees, please add cooling fan )
*Constant current range :0.3-10A ( adjustable )
*Turn lamp current : constant current value * ( 0.1 ) , turn the lamp current and constant value linkage, such as constant current value is 3A, turn the lamp current is set to a constant current is 0.1 times (0.1 * 3A = 0.3A).
*Lowest pressure : 1V
*Output Power: about 250W , Maximum
*Conversion efficiency : up to about 95%
*Operating frequency : 300KHZ
*Output ripple : 20M bandwidth
*Input 24V Output 12V 5A ripple around 50mV ( excluding noise )
*Operating temperature : Industrial grade (-40 °c to +85 °c) ( please note the actual use of the power tube temperature , high temperature heat strengthened please )
*No-load current : Typical 20mA (24V switch 12V)
*Load regulation : ± 1% ( constant )
*Voltage regulation : ± 1%
*Dynamic response speed : 5% 200uS
*Potentiometer adjustment direction : clockwise ( increase ) , counterclockwise ( decrease ) . the potentiometer(CV) closed to the input voltage is used to regulate voltage, the potentiometer(CC) closed to output voltage is used to regulate current (CC)
Indicator : dual color indicator , charging indicator light is red , the green light means fully charged ( No load is green )
*Output short circuit protection : Yes , constant current
*Dimensions : 65 * 47 * 23.5 mm
You buy SMAKN® Constant Current/Voltage DC Buck Converter 7-40V To 1.25-35V LED Driver Charger Module 8A with Coupon : LOTET will be discounted 10%
