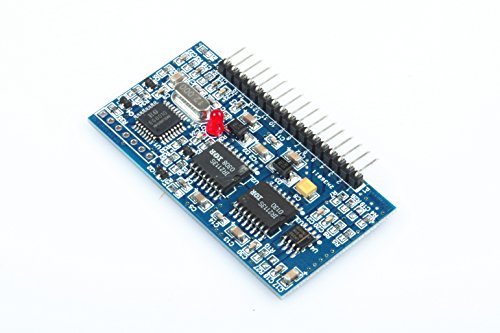

XINY Pure sine wave inverter driver board EGS002 "EG8010 + IR2110" SPWM Driver Board
You buy XINY Pure sine wave inverter driver board EGS002 "EG8010 + IR2110" SPWM Driver Board with Coupon : LOTET will be discounted 10%
.
Why Use XINY Pure sine wave inverter driver board EGS002 "EG8010 + IR2110" SPWM Driver Board ?
Design rich colors to choose fromOnline shopping for Automotive from a great selection of Tire & Wheel Tools, Diagnostic & Test Tools, Body Repair Tools, Garage . Find excellent deals on a variety of diagnostics tools and testing equipment . This pallet flag provides a twist on the usual flag design by replacing the blue field of stars with a cutout map of the United States with a string art star! Perfect for the 4th of July, this pallet flag will bring flea market style to your patriotic celebration!.XINY Pure sine wave inverter driver board EGS002 "EG8010 + IR2110" SPWM Driver Board will help your job easier dexUnipolar and bipolar modulation.
Comes with deadband control, pin 4 dead time: 300nS dead time 500nS dead time 1.0uS dead time 1.5uS dead time.
External Serial 128 * 32 LCD display module inverter voltage, frequency, temperature, and current information.
Voltage protection: output below 187V, output shut.
LCD Type: 1 dedicated LCD; 2 ordinary 128 * 32 LCD (liquid crystal sold separately).
This driver board are:
A: undervoltage protection + 128 * 32 LCD.
B: LCD + special undervoltage protection.
C: No undervoltage protection + 128 * 32 LCD.
D: No special undervoltage protection LCD +.
Size:62*37*7.8mm/2.41*1.45*0.31in.
Weight:11g/0.38oz.
Features:
5V single power supply.
Pin 4 kinds of pure sine wave Output frequency: 50Hz pure sine wave of fixed frequency of fixed frequency 0-100Hz 60Hz pure sine wave pure sine wave frequency adjustable 0-400Hz adjustable frequency pure sine wave.
Unipolar and bipolar modulation mode.
Comes with dead-time control pin 4 kinds of dead time: 300nS 500nS dead time dead time 1.0uS dead time dead time 1.5uS.
External 12MHz crystal oscillator.
PWM carrier frequency 23.4KHz.
Voltage, current, temperature feedback real-time processing.
Overvoltage, undervoltage, overcurrent, overheating protection function.
Pin set soft-start mode 1S response time.
Serial communication to set the output voltage, frequency and other parameters.
External Serial 128 * 32 LCD display module inverter voltage, frequency, temperature, and current information.
