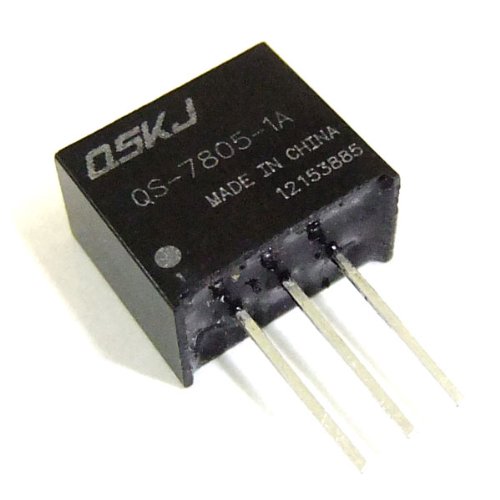

DROK® Ultra Small 1A DC synchronous buck Converter 6.5-24V 12V to 5V Step Down Power Supply Replace lm7805
You buy DROK® Ultra Small 1A DC synchronous buck Converter 6.5-24V 12V to 5V Step Down Power Supply Replace lm7805 with Coupon : LOTET will be discounted 10%
.
Why Use DROK® Ultra Small 1A DC synchronous buck Converter 6.5-24V 12V to 5V Step Down Power Supply Replace lm7805 ?
Design rich colors to choose fromOnline shopping for Automotive from a great selection of Tire & Wheel Tools, Diagnostic & Test Tools, Body Repair Tools, Garage . Find excellent deals on a variety of diagnostics tools and testing equipment . This pallet flag provides a twist on the usual flag design by replacing the blue field of stars with a cutout map of the United States with a string art star! Perfect for the 4th of July, this pallet flag will bring flea market style to your patriotic celebration!.DROK® Ultra Small 1A DC synchronous buck Converter 6.5-24V 12V to 5V Step Down Power Supply Replace lm7805 will help your job easier dexFeatrure:
Module Properties: non-isolated step-down module (buck)
Rectifier mode: synchronous rectification
Input Voltage :6.5-24V ( if input greater than 15V, output current 0.8A)
Output voltage: 5V ( Precision ?%)
Output power: 5W
Recommended input and output capacitors: input capacitance 10UF (ceramics), the output capacitor 22UF (ceramic)
Maximum capacitive load: 1000UF
Output Current: 1A
Conversion efficiency: input voltage 6.5V 94% (highest), input voltage 20V 85% (minimum)
Operating temperature: industrial-grade (-40°c to +85°c) (85°c Output current 0.5A)
The maximum case temperature at working: 100°c
Full load temperature rise: 50°c
Load regulation: ?0.5%
Voltage Regulation: ?0.5%
Output ripple: 1A load current (typical application circuit, the input ceramic capacitors 10UF, output ceramic capacitors 22UF)
Input 6.5V, ripple 13mV
Input 12V, ripple 30mV
Input 20, ripple 45mV
Bandwidth: 20M
If you need to lower the ripple, please install LC filter at the output
Dynamic response speed: 5% 200uS
Short circuit protection: current limit (3A), Self-Recovery
Over-temperature protection: 150°c
Static Current: 7-20 mA (The higher the input voltage, the higher of the Static Current)
Input reverse polarity protection: None
Wiring: Welding, the SIP-3 package, compatible with the LM7805.
Notice:
Integrated within the filter capacitor, Even without an external capacitor, the item can work properly.
In order to lower the output ripple, please install filter capacitor at the input and output port.
Package Includes:
1x DC Converter
